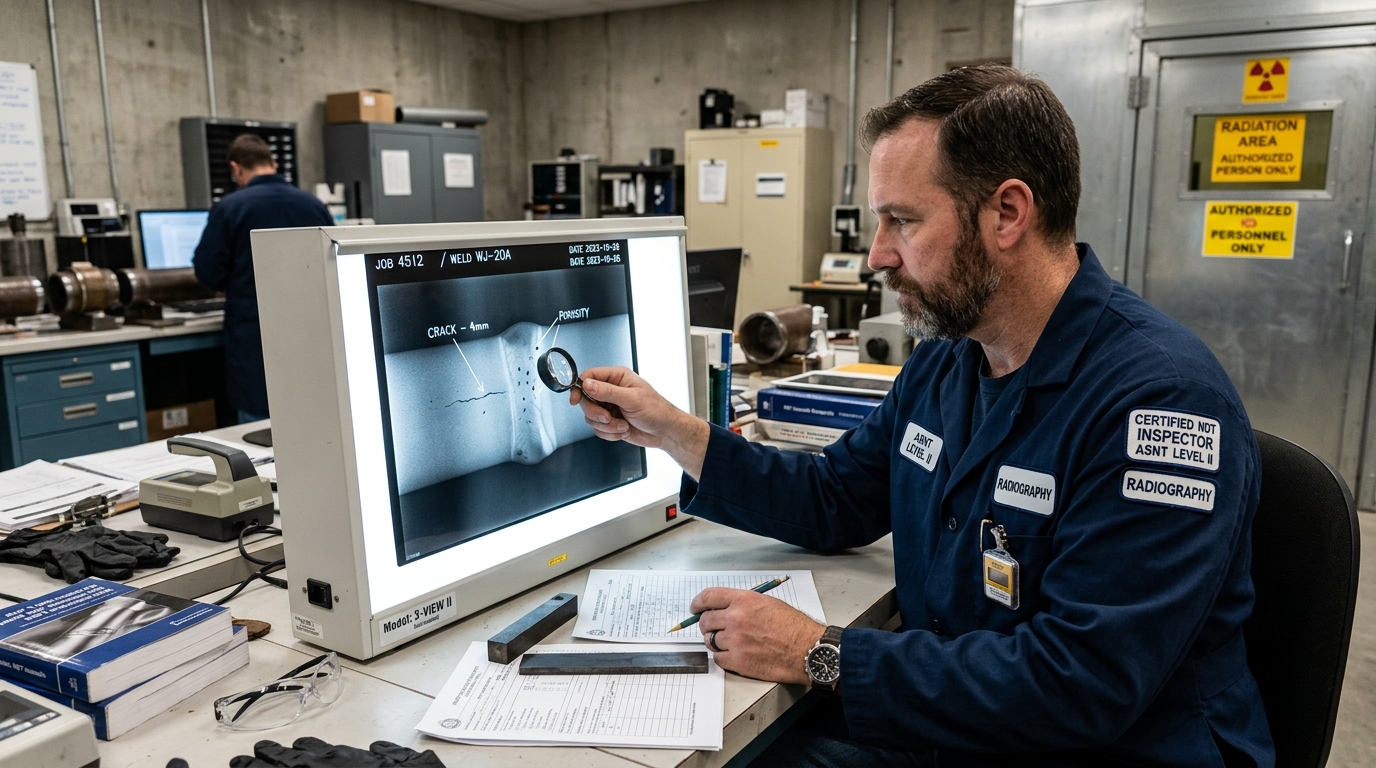

Radiographic Testing (RT) Services
Certified Industrial Radiographic Testing (RT) & film interpretation for high-pressure piping, boiler tubes, pressure vessels, and structural weldments. Testing is performed by appropriately qualified and certified NDT personnel in accordance with applicable codes, standards, specifications, and approved procedures.
Principle & Testing Methodology
Radiographic Testing uses differential absorption of penetrating ionizing radiation (X-rays or Gamma-rays from Ir-192 / Co-60 sources) directed through the test object onto high-contrast radiographic film or digital detector arrays. Variations in material thickness or density caused by internal flaws produce contrasting image densities for evaluation.
Defects & Discontinuities Detected
- Lack of root penetration (LOP) and lack of fusion (LOF)
- Internal slag inclusions and tungsten entrapment
- Volumetric porosity clusters and wormhole piping
- Root concavity and burn-through
- Internal casting shrinkage and gas voids
Typical Industrial Applications & Components
- High-pressure process piping cross-country pipelines
- Boiler steam drum longitudinal and circumferential seams
- Pressure vessel category A and B weld joints
- High-integrity valve bodies and turbine pump castings
Applicable Materials
Carbon steels, alloy steels, stainless steels, nickel alloys, and heavy casting sections.
Technical Specifications
ASME Section V Article 2, ASME B31.3, API 1104, AWS D1.1, ASTM E94, ISO 17636
Master Radiographic Film Interpretation (RTFI) certificates, calibrated high-density radiographic films with lead IQI sensitivity verification, and joint-by-joint weld defect disposition reports.
On-Site Mobilization
Starwave NDT provides rapid on-site inspection teams equipped with calibrated equipment across all 20 approved industrial locations.
Radiographic Testing (RT) of Weld Joints Across Our 20 Regional Hubs
Request a Quotation for Radiographic Testing (RT) Services
Get code-compliant testing schedules and immediate pricing for Radiographic Testing (RT) of Weld Joints requirements. Testing is performed by appropriately qualified and certified personnel in accordance with applicable codes, standards, and approved procedures.
Direct Engineering Review
Your component geometry, code requirement, and timeline are reviewed by certified Level II/III engineers.
Rapid Mobilization
On-site inspection coverage available across all 20 industrial regions in North India.
