Ultrasonic Testing (UT) Services
Certified Ultrasonic Testing (UT) services for weld inspection, forging evaluation, casting integrity, and lamination detection by ASNT Level II/III personnel. Testing is performed by appropriately qualified and certified NDT personnel in accordance with applicable codes, standards, specifications, and approved procedures.
Principle & Testing Methodology

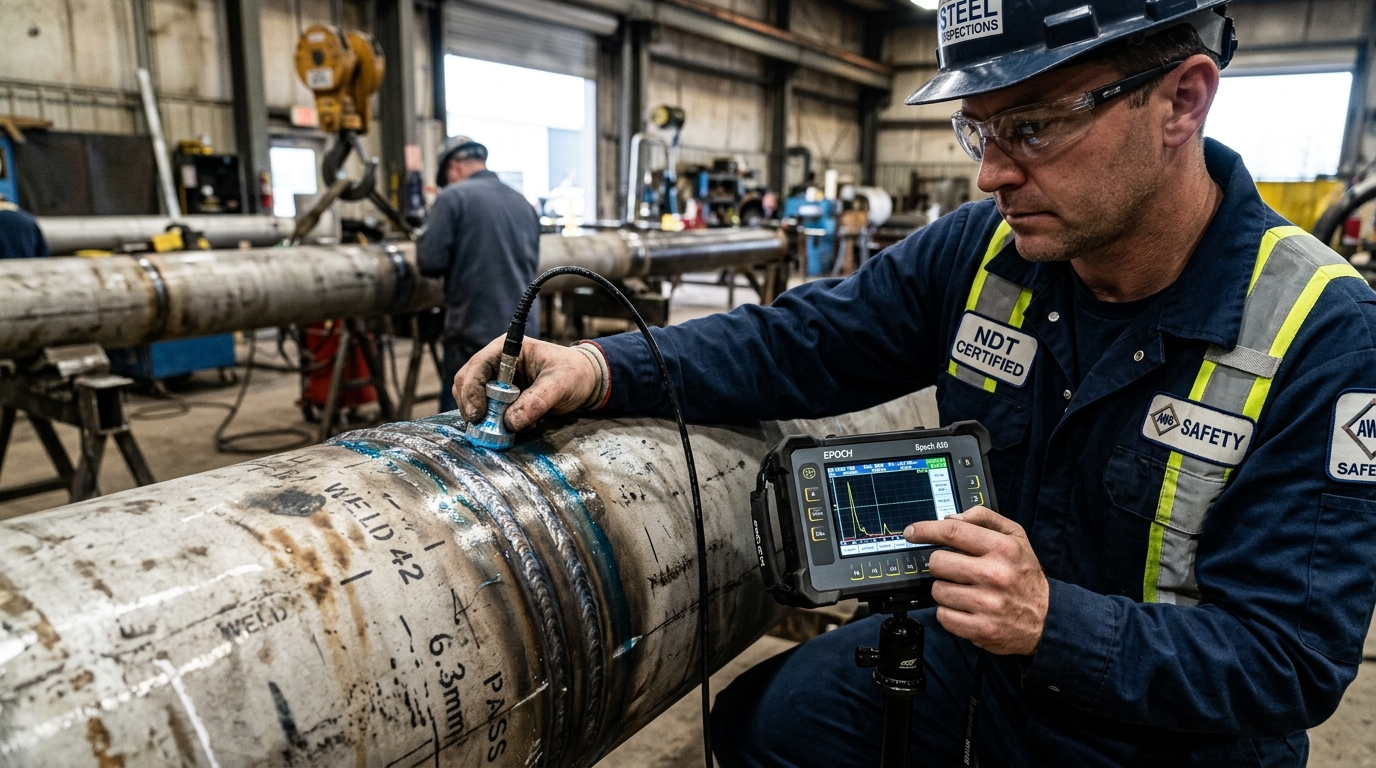

Ultrasonic testing utilizes high-frequency acoustic sound waves (typically 1 MHz to 10 MHz) introduced into test materials via piezoelectric transducers. Sound waves reflect off material boundaries and internal discontinuities (cracks, inclusions, lack of fusion), returning precise time-of-flight and amplitude signals to determine flaw depth, orientation, and size.
Defects & Discontinuities Detected
- Lack of side-wall and root weld fusion
- Subsurface hydrogen cracking and inclusions
- Laminations in structural steel plates
- Shrinkage cavities in alloy castings
- Forging bursts and chevron cracks
Typical Industrial Applications & Components
- Pressure vessel circumferential and longitudinal weld seams
- Heavy forged turbine shafts, generator rotors, and roll necks
- Structural steel moment connections and bridge truss joints
- Boiler steam piping and high-pressure tubing
Applicable Materials
Carbon and low-alloy steels,Austenitic stainless steels (with specialized angle probes),Aluminum and titanium aerospace alloys,Forged tool steels and ductile iron castings
Technical Specifications
ASME Section V Article 4 & 5, AWS D1.1/D1.1M, ASTM A388, ASTM E164, ISO 17640, ISO 11666
Calibrated digital A-Scan echograms, flaw sizing dB-amplitude calculation logs, remaining wall thickness contour maps, and ASNT Level II/III certified inspection reports.
On-Site Mobilization
Starwave NDT provides rapid on-site inspection teams equipped with calibrated equipment across all 20 approved industrial locations.
Ultrasonic Testing (UT) Across Our 20 Regional Hubs
Request a Quotation for Ultrasonic Testing (UT) Services
Get code-compliant testing schedules and immediate pricing for Ultrasonic Testing (UT) requirements. Testing is performed by appropriately qualified and certified personnel in accordance with applicable codes, standards, and approved procedures.
Direct Engineering Review
Your component geometry, code requirement, and timeline are reviewed by certified Level II/III engineers.
Rapid Mobilization
On-site inspection coverage available across all 20 industrial regions in North India.
Call our engineering team directly at +91 9354689771 or email [email protected].
